High Head Pump

GPM’s newest and latest design is our new HH series. Developed for underground mining and pit dewatering to handle low flow high head situations.

GPM has served in the mining industry for over 45 years with our industry-leading GPM-Eliminator™ slurry pump. Our pumps continue to be used in applications from dewatering to pumping 70% solids, with success driven by the sheer reliability of our product. We designed the GPM-Eliminator High Head Pump (HH2) to address common issues in underground dewatering mining applications.

Applications Served:

  • Shaft Bottom to Start
  • Ramp Applications – Already set up for High Head Pumping
  • Between Shaft Bottoms
  • Face Dewatering
GPM-Eliminator High Head Dewatering Pump

CD4CMu Wet End & open impeller design

50’ Cable with Longer Options Available

16SS Shaft Construction

Inverter Duty Motor with Class H Winding Insulation

High-Head Up and Out: GPM High-Head Pump Shoots 2000 gallons per minute up 500 feet

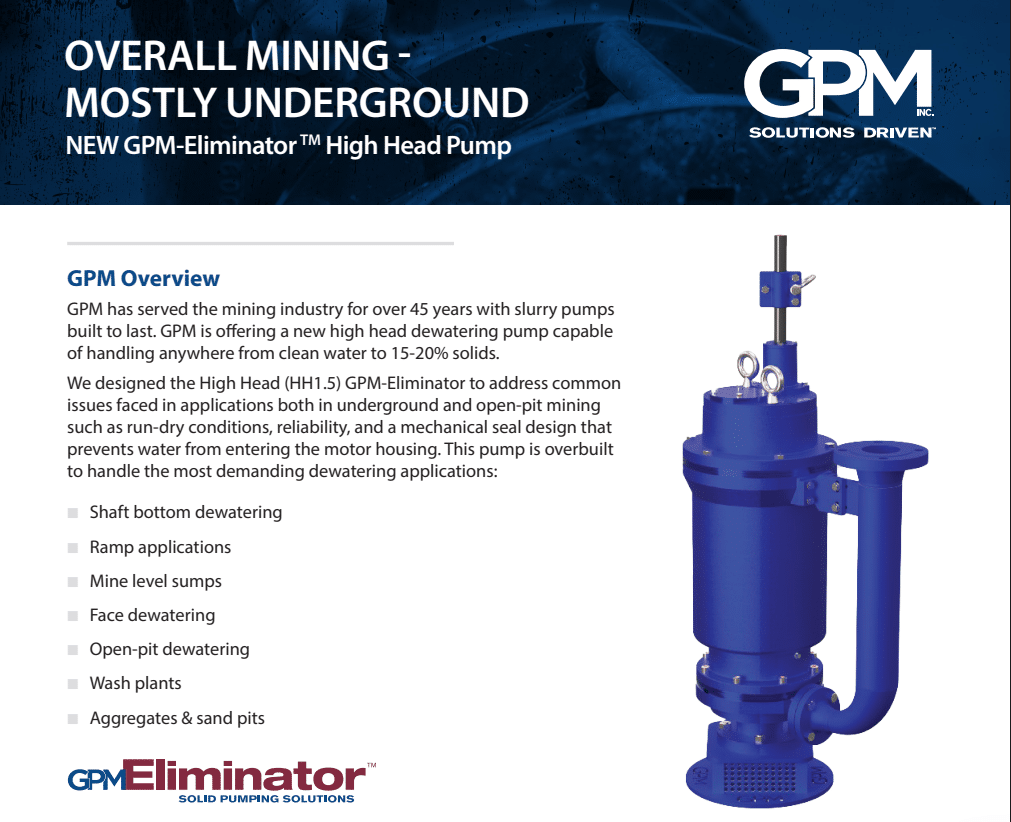

Download a PDF version of the High Head Pump Overview

    High Head Pump Curve

    High Head Pump Curve for the GPM-Eliminator

    High Head Pumps Come Standard With the Following Features:

    A grey circle with a hand-drawn blue checkmark.

    50′+ Cable

    A grey circle with a hand-drawn blue checkmark.

    Run dry capabilities, Class H (180°C) winding insulation

    A grey circle with a hand-drawn blue checkmark.

    28% high-chrome, 650+ Brinell hardness or CD4MCu wet-end materials

    A grey circle with a hand-drawn blue checkmark.

    416SS shaft construction

    Industries Served by the High Head Pump Pump

    More GPM-Eliminators

    A GPM-Eliminator™ monobloc slurry pump on a transparent background.
    MonoBloc Pump
    A GPM-Eliminator™ extended shaft slurry pump on a transparent background.
    Extended Shaft Pump
    A GPM-Eliminator™ horizontal slurry pump on a transparent background.
    Horizontal Pump
    A GPM-Eliminator™ submersible slurry mixer pump on a transparent background
    Submersible Mixer Pump
    GPM-Eliminator™ submersible slurry pump on a transparent background.
    Submersible Slurry Pump

    Download the GPM-Eliminator™ Brochure
